USB2412 Hub Controller: Features, Pinout and Datasheet

The following figure is the diagram of USB2412 pinout.

Pinout

The followings are USB2412 Symbol, Footprint, and 3D Views.

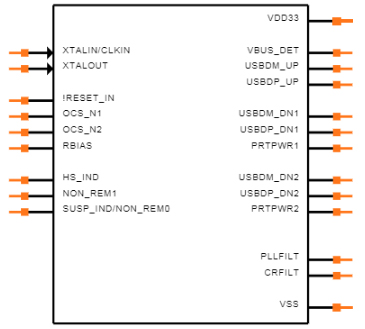

Symbol

Footprint

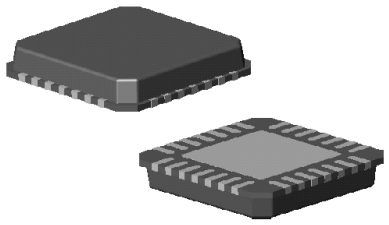

3D Views

The USB2412 hub is a low-power, single transaction translator (STT) hub controller IC with two downstream ports for embedded USB applications. The hub controller supports low-speed, full-speed, and hi-speed (if operating as a hi-speed hub) downstream devices on all of the enabled downstream ports.

This article provides you with a basic overview of the USB2412 Hub Controller, including its pin descriptions, features and specifications, etc., to help you quickly understand what USB2412 is.

● Fully integrated USB termination and pull-up/pull-down resistors

● Supports a single external 3.3 V supply source; internal regulators provide 1.2 V internal core voltage

● On-chip 24 MHz crystal driver or external 24 MHz clock input

● ESD protection up to 4 kilovolts on all USB pins

● Supports self-powered operation

● Contains a built-in default configuration; no external configuration options or components are required

● Downstream ports as optional non-removable ports

● Supports compound devices on a port-by-port basis

● 28-pin QFN (5 x 5 mm) lead-free RoHS compliant package

● Supports the commercial temperature range: 0ºC to +70ºC

● High performance, low-power, small footprint hub controller IC with two downstream ports

● Fully compliant with the USB 2.0 Specification.

● 28QFN low pin count package

● Optimized for minimal bill-of-materials and low cost designs

Microchip Technology USB2412-DZK-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology USB2412-DZK-TR.

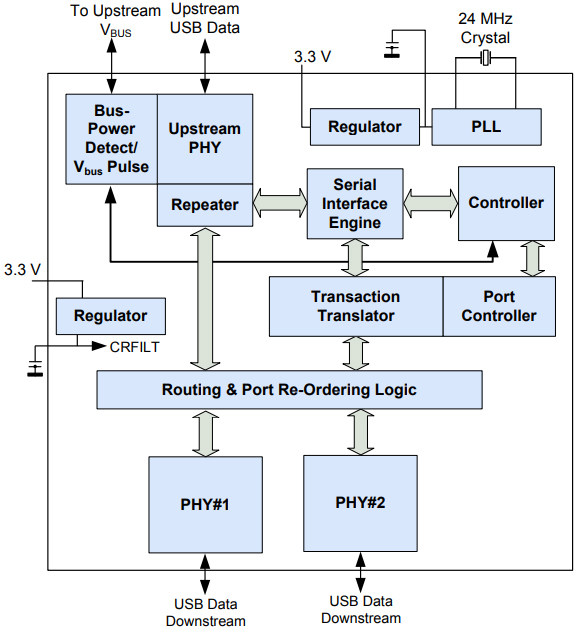

The following is the Block Diagram of USB2412.

USB2412 Block Diagram

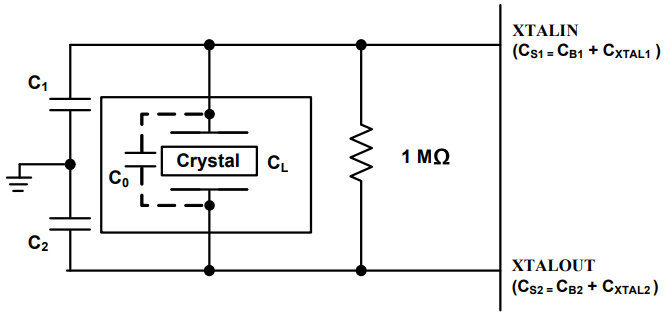

The following is the Typical Crystal Circuit of SI5340.

Typical Crystal Circuit

● Automobile/home audio systems

● Cable/DSL modems

● Embedded systems

● Gaming consoles

● HDD enclosures

● IP telephony

● KVM switches

● LCD monitors and TVs

● Multi-function USB peripherals

● Mobile PC docking

● PC motherboards

● PC media drive bay

● Portable hub boxes

● Point-of-Sale (POS) systems

● Printers and scanners

● Server front panels

● Set-top boxes, DVD players, DVR/PVR

● Thin client terminals

The following diagrams show the USB2412 package.

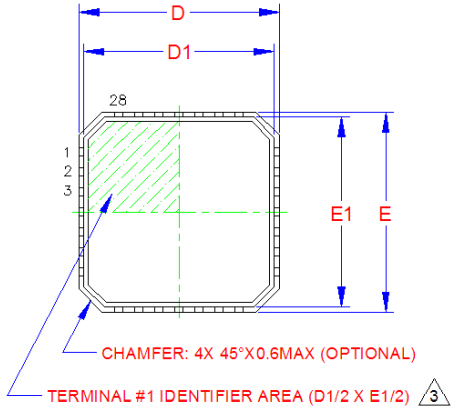

Top View

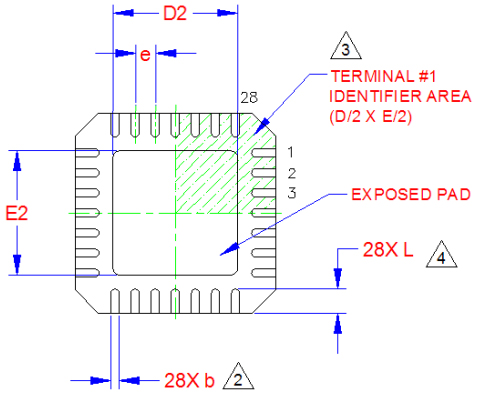

Bottom View

Side View

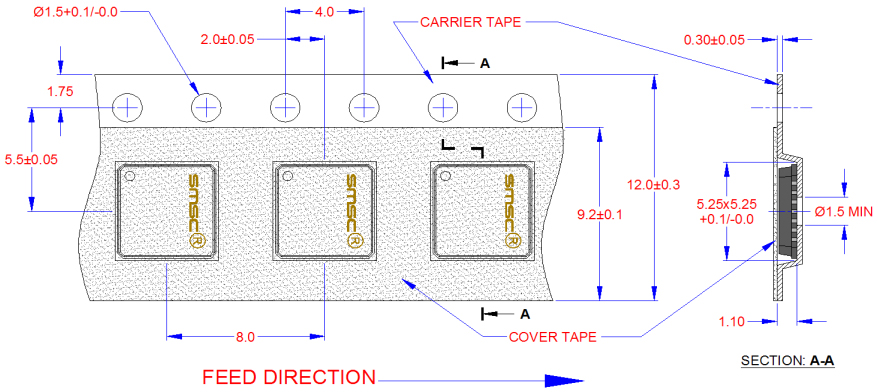

The following diagram shows the USB2412 Tape and Reel Specification.

28-Pin Package Tape Dimensions and Part Orientation (mm)
