UVG100 has excellent UV responsivity of 0.09 A/W and has a response time of 10 µsec. So this article is going to talk about more detailed information about UVG100.
UVG100 SENSOR PHOTODIODE 254NM 10MM[FAQ]: Datasheet, Features, and Parameters
SENSOR PHOTODIODE 254NM 10MM UVG100 has excellent UV responsivity of 0.09 A/W and has a response time of 10 μsec. So this article is going to talk about more detailed information about UVG100.
285
Mar 18, 2022
Darlene Kent
UVG100
Inquiry
Min.: 1 Mult.: 1
Quick Links

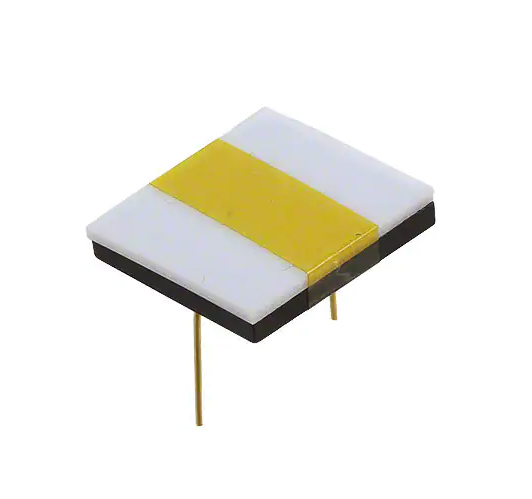

Overview of UVG100
Opto Diode Corporation's UVG100 photodiode has a 100 mm sq active area and operates at wavelengths ranging from 190 to 400 nm. It has a response time of 10 seconds and a UV responsivity of 0.09 A/W. This photodiode has a reverse breakdown voltage of 10 volts and a capacitance of less than 3 nF. A protective cover plate is included with the device to protect the photodiode chip and wire bonds.
UVG100 Features
• Square Active Area
• Ideal for 190-400 nm Detection
• 100% Internal QE
• Excellent UV Response
• Protective Cover Plate2
UVG100 General Parameters
| Channels | Single |
| Configuration | Single |
| Package Type | Through-Hole |
| Wavelength Range | 190 to 400 nm |
| Reverse Voltage | 5 to 10 V |
| RoHS | Yes |
| Shunt Resistance | 20 ohms |
| Spectral Band | Ultraviolet |
| Capacitance | 1 to 3 nF |
| Responsivity/Photosensitivity | 0.08 to 0.09 A/W |
| Rise Time | 10 µ sec |
Specifications
UVG100 Tech Specifications
UVG100 Tech Specifications
Opto Diode Corp UVG100 technical specifications, attributes, parameters and parts with similar specifications to Opto Diode Corp UVG100.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 16 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | DIP | |
| Operating Temperature | -20°C~80°C | |
| Packaging | Bulk | |
| Series | UVG |
| Product Attribute | Attribute Value | |
|---|---|---|
| Published | 2015 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 80°C | |
| Min Operating Temperature | -20°C | |
| Response Time | 10μs |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - DC Reverse (Vr) (Max) | 10V | |
| Max Reverse Voltage (DC) | 10V | |
| Active Area | 100mm2 | |
| Responsivity @ nm | 0.09 A/W @ 254nm | |
| RoHS Status | RoHS Compliant |
Electro-Optical Characteristics at 25 °C
| Parameters | Test Conditions | Min | Typ | Max | Units |
| Active Area | 10 mm x 10 mm | 100 | mm2 | ||
| Responsivity | @ 254 nm | 0.08 | 0.09 | A/W | |
| Shunt Resistance | @ ± 10 mV | 20 | moms | ||
| Reverse Breakdown Voltage, VR | IR = 1 µA | 5 | 10 | Volts | |
| Capacitance, C | VR = 0 V | 1 | 3 | nF | |
| Response Time | RL = 50 Ω, VR = 10 V | 10 | uses |

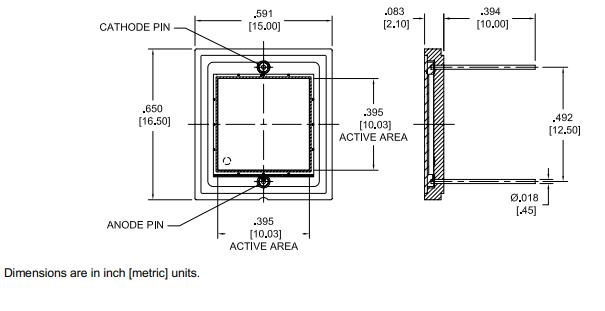

UVG100 Package Information
UVG100 Package Information
UVG100 Manufacturer
Short wavelengths, X-rays, EUV, UV, visible, near IR, and mid-IR wavelengths are all covered by Opto Diode's standard and custom sensors and emitters. Opto Diode's conventional and custom solutions are suitable for a wide range of applications in the aerospace, environmental, fire, flame, and gas detection, medical, military, industrial, scientific, and semiconductor markets.
