SSR, MOSFET, 60V, 100mA
The VO1400AEF is an optically isolated 1 form A solid-state relay in a surface mount 4 pin SOP package. This passage is going to introduce VO1400AEF from the perspectives of description, CAD models, and datasheet.
VO1400AEFTR:60v,pinout, datasheet and circuit
SSR, MOSFET, 60V, 100mA The VO1400AEF is an optically isolated 1 form A solid-state relay in a surface mount 4 pin SOP package. This passage is going to introduce VO1400AEF from the perspectives of description, CAD models, and datasheet.
96
Feb 17, 2022
Elroy Davy
VO1400AEFTR
Inquiry
Min.: 1 Mult.: 1
Quick Links
VO1400AEFTR Description

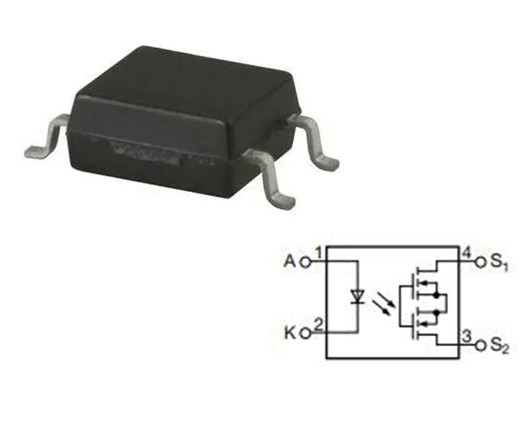

The VO1400AEFTR is a 1-pole optically isolated Solid-state Relay (SSR), surface mount, 1 form-A contact configuration, 1500VRMS isolation test voltage, TTL/CMOS compatible input.
VO1400AEFTR Feature
• Maximum RON 5 Ω
• Load voltage 60 V
• Load current 100 mA
• Isolation test voltage 3750 VRMS
• Small 4 pin SOP package
• Clean bounce-free switching
• TTL / CMOS compatible input
• High-reliability hybrid receptor
• Available on tape and reel
VO1400AEFTR CAD Models

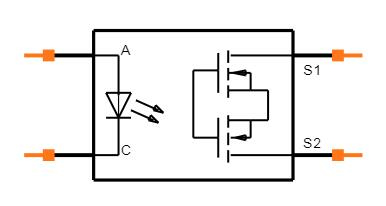

Symbol

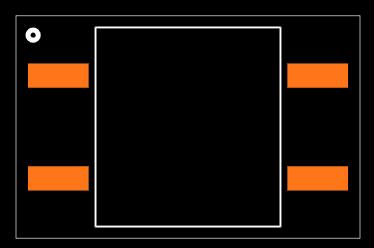

Footprint

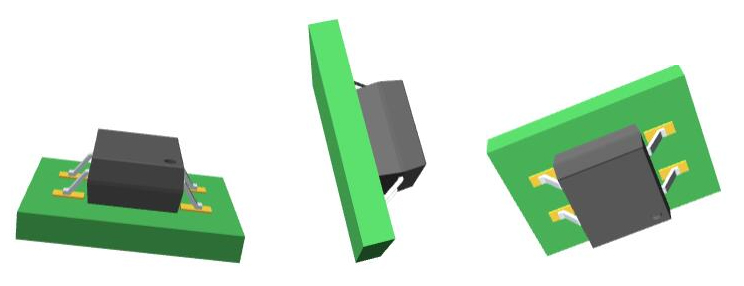

3D Models
VO1400AEFTR Application
1. Automotive
Advanced driver assistance systems (ADAS)/Body electronics & lighting/Hybrid, electric & powertrain systems/Infotainment & cluster
2. Communications equipment
Broadband fixed-line access/Datacom module/Wired networking/Wireless infrastructure
3. Enterprise systems
Datacenter & enterprise computing/Enterprise machine/Enterprise projectors
VO1400AEFTR Manufacturer
Felix Zandman, a Polish-born businessman, founded Vishay Intertechnology, Inc., an American manufacturer of discrete semiconductors and passive electronic components. Vishay manufactures rectifiers, diodes, MOSFETs, optoelectronics, selected integrated circuits, resistors, capacitors, and inductors in Israel, Asia, Europe, and the Americas. In 2018, Vishay Intertechnology's revenue was $3.035 billion. Vishay Intertechnology had approximately 24,100 full-time employees as of December 31, 2018.
Vishay is a leading manufacturer of power MOSFETs in the world.
Power electronic applications include portable information appliances, internet communications infrastructure, power integrated circuits, cell phones, and notebook computers.
VO1400AEFTR Package Dimensions
Specifications
VO1400AEFTR Tech Specifications
VO1400AEFTR Tech Specifications
Vishay Semiconductor Opto Division VO1400AEFTR technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Opto Division VO1400AEFTR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | PCB, Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SOP (0.173, 4.40mm) | |
| Number of Pins | 4Pins | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Published | 2013 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | Gull Wing | |
| ECCN Code | EAR99 | |
| Resistance | 2.3Ohm | |
| Max Operating Temperature | 85°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -40°C | |
| Additional Feature | UL RECOGNIZED | |
| Max Power Dissipation | 120mW | |
| Depth | 4.39mm | |
| Termination Style | Gull Wing | |
| Number of Contacts | 1Contact | |
| Output Voltage | 60V | |
| Output Type | AC, DC | |
| Max Output Current | 100mA | |
| Circuit | SPST-NO (1 Form A) | |
| Output Current | 100mA | |
| Throw Configuration | SPST | |
| Input Type | DC | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT SSR | |
| Forward Current | 1mA | |
| Max Output Voltage | 60V | |
| Max Input Voltage | 1.4V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Relay Type | Relay | |
| Forward Voltage | 1.4V | |
| Voltage - Load | 0V~60V | |
| On-State Resistance (Max) | 5Ohm | |
| Max Input Current | 50mA | |
| Max Forward Surge Current (Ifsm) | 50mA | |
| Input Current | 50mA | |
| Isolation Voltage | 1.5kV | |
| Ambient Temperature Range High | 85°C | |
| Control Current | 0.0003A | |
| On-State Resistance | 5Ohm | |
| Height | 2.42mm | |
| Length | 4.7mm | |
| REACH SVHC | Unknown | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Datasheet PDF
VO1400AEFTR Documents
VO1400AEFTR Documents
Download datasheets and manufacturer documentation for VO1400AEFTR
Datasheets
VO1400AEFTR
RohsStatement
Vishay-company-15.pdf
Mfg CAD Models
SOP-4V1.(igs,stp)
Simulation Models
VO1400_V2 Spice Model
Frequently Asked Questions
What’s the handling and storage conditions of VO1400AEFTR?
ESD level: HBM class 2
Floor life: unlimited
Conditions: Tamb < 30 °C, RH < 85 %
Moisture sensitivity level 1, according to J-STD-020
Where does VO1400AEFTR made by?
VO1400AEFTR is made by an American manufacturer of discrete semiconductors and passive electronic components--Vishay Intertechnology.
Can VO1400AEFTR be operated in the temperature of 100℃?
No, its suitable operating temperature is between -40℃ and +85℃.
What’s the dimensions of VO1400AEFTR ?
Length:4.92mm/Width:4.57mm/Height:2.12mm
How many pins does VO1400AEFTR have？
4pins.
FAQ
What’s the handling and storage conditions of VO1400AEFTR?
ESD level: HBM class 2
Floor life: unlimited
Conditions: Tamb < 30 °C, RH < 85 %
Moisture sensitivity level 1, according to J-STD-020
Where does VO1400AEFTR made by?
VO1400AEFTR is made by an American manufacturer of discrete semiconductors and passive electronic components--Vishay Intertechnology.
Can VO1400AEFTR be operated in the temperature of 100℃?
No, its suitable operating temperature is between -40℃ and +85℃.
What’s the dimensions of VO1400AEFTR ?
Length:4.92mm/Width:4.57mm/Height:2.12mm
How many pins does VO1400AEFTR have？
4pins.
