W25Q128JVSIQ 8SOIC 3V 128M-bit serial flash memory:Datasheet, Pinout ang Package

• The W25Q128JVSIQ (128M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins, and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP), and storing voice, text, and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 1µA for power-down. All devices are offered in space-saving packages.

• The W25Q128JVSIQ array is organized into 65,536 programmable pages of 256-bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase), or the entire chip (chip erase). The W25Q128JV has 4,096 erasable sectors and 256 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. (See Figure 2.)

• The W25Q128JVSIQ supports the standard Serial Peripheral Interface (SPI), Dual/Quad I/O SPI: Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2, and I/O3. SPI clock frequencies of W25Q128JVSIQ of up to 133MHz are supported allowing equivalent clock rates of 266MHz (133MHz x 2) for Dual I/O and 532MHz (133MHz x 4) for Quad I/O when using the Fast Read Dual/Quad I/O. These transfer rates can outperform standard Asynchronous 8 and 16-bit Parallel Flash memories.

• New Family of SpiFlash Memories

– W25Q128JV: 128M-bit / 16M-byte

– Standard SPI: CLK, /CS, DI, DO

– Dual SPI: CLK, /CS, IO0, IO1

– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3

– Software & Hardware Reset(1)

• Highest Performance Serial Flash

– 133MHz Single, Dual/Quad SPI clocks

– 266/532MHz equivalent Dual/Quad SPI

– 66MB/S continuous data transfer rate

– Min. 100K Program-Erase cycles per sector

– More than 20-year data retention

• Efficient “Continuous Read”

– Continuous Read with 8/16/32/64-Byte Wrap

– As few as 8 clocks to address memory

– Allows true XIP (execute in place) operation

• Low Power, Wide Temperature Range

– Single 2.7 to 3.6V supply

– <1µA Power-down (type.)

– -40°C to +85°C operating range

– -40°C to +105°C operating range

• Flexible Architecture with 4KB sectors

– Uniform Sector/Block Erase (4K/32K/64K-Byte)

– Program 1 to 256 bytes per programmable page

– Erase/Program Suspend & Resume

• Advanced Security Features

– Software and Hardware Write-Protect

– Power Supply Lock-Down

– Special OTP protection

– Top/Bottom, Complement array protection

– Individual Block/Sector array protection

– 64-Bit Unique ID for each device

– Discoverable Parameters (SFDP) Register

– 3X256-Bytes Security Registers with OTP locks

– Volatile & Non-volatile Status Register Bits

• Space Efficient Packaging

– 8-pin SOIC 208-mil

– 16-pin SOIC 300-mil (additional /RESET pin)

– 8-pad WSON 6x5-mm / 8x6-mm

– 24-ball TFBGA 8x6-mm (6x4/5x5 ball array)

– 24-ball WLCSP

– Contact Winbond for KGD and other options

Winbond Electronics W25Q128JVSIQ technical specifications, attributes, parameters and parts with similar specifications to Winbond Electronics W25Q128JVSIQ.

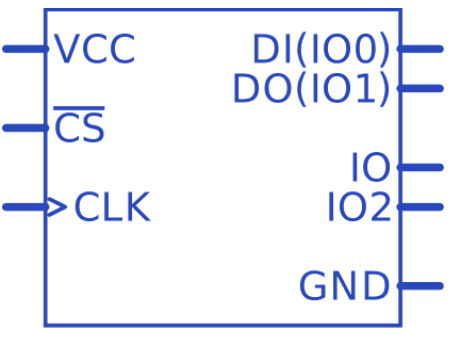

W25Q128JVSIQ Symbol

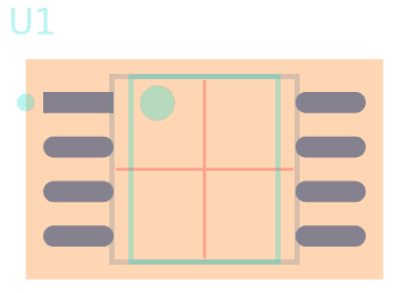

W25Q128JVSIQ Footprint

W25Q128JVSIQ Block Diagram

• Standard SPI Instructions

• Dual SPI Instructions

• Quad SPI Instructions

• Software Reset & Hardware /RESET pin

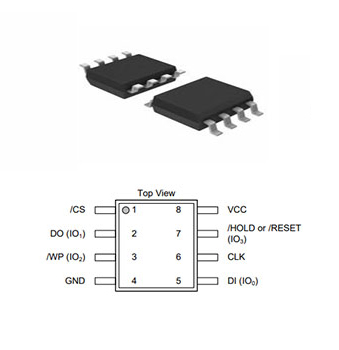

8-Pin SOIC

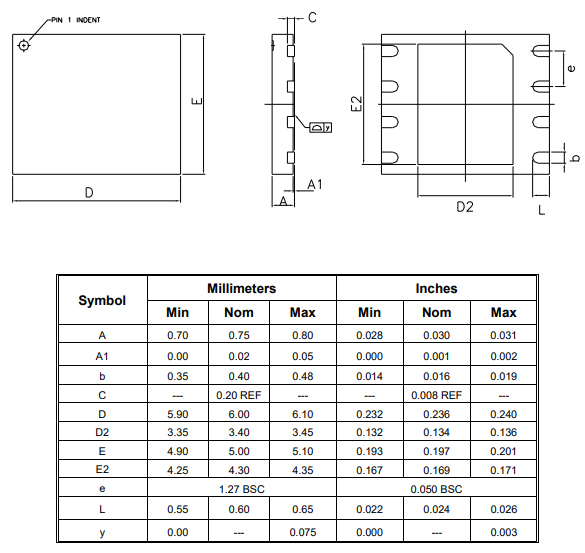

8-Pad WSON 6x5-mm

Winbond Electronics Corporation is a memory IC company engaged in design, manufacturing, and sales service to provide its global customers top quality memory solutions. Winbond’s product lines include Code Storage Flash Memory, Serial and Parallel NAND, Specialty DRAM, and Mobile DRAM. Winbond products are widely used by companies in the IoT vertical markets such as computing, connected multimedia devices, automobile, networking systems, and industrial. Winbond offers automotive and Industrial –Plus grade Flash and DRAM products with longevity support. Winbond has approximately 2,200 employees worldwide, which includes a 12-inch FAB at its headquarters in Taichung, Taiwan.
