What do you need to know about M24M01 SMT Serial I2C bus EEPROM

The M24M01 is a 1 Mbit  I2C -compatible EEPROM (Electrically Erasable Programmable Memory) with 128 K 8-bit organization. Over an ambient temperature range of –40 °C / +85 °C, the M24M01-R can function with a supply voltage ranging from 1.8 V to 5.5 V, while the M24M01-DF  can operate with a supply voltage ranging from 1.7 V to 5.5 V.

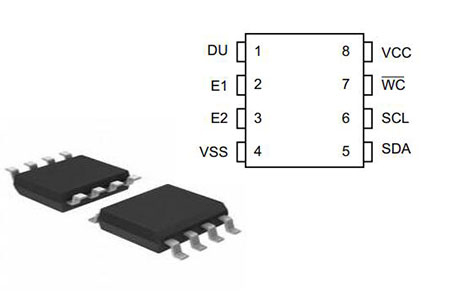

 M24M01 Pinout

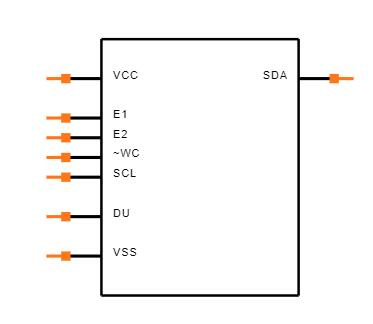

M24M01 Symbol

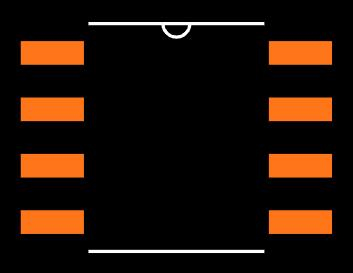

M24M01 Footprint

STMicroelectronics M24M01-RMN6P technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics M24M01-RMN6P.

• Compatible with all I2C bus modes    :

     – 1 MHz

     – 400 kHz

     – 100 kHz

• Memory array:

     – 1 Mbit (128 Kbyte) of EEPROM

     – Page size: 256 byte

     – Additional Write  lockable page (M24M01-D order codes)

• Single supply voltage  and high speed  :

     – 1 MHz clock from 1.7 V to 5.5 V

• Write:

     – Byte Write within 5 ms

     – Page Write  within 5 ms

• Operating temperature range  :

     – from -40 °C up to +85 °C

• Random and sequential Read modes

• Write protect the whole memory array

• Enhanced ESD/Latch-Up protection

• More than 4 million Write  cycles

• More than 200-years data retention

• Cellular Phones

• Set-top Boxes

• Nomadic Applications

• Industrial Systems

EEPROM stands for Electronically Erasable Programmable Read-Only Memory. It allows values to be written and stored for lengthy periods of time with extremely minimal power consumption.

The I2C protocol is a two-wire interface, which means there are two signal lines on the bus: clock and data. Both signals are connected to every device on the bus. A master transmits a start bit followed by a control byte when it wants to connect with one of the devices on the bus.

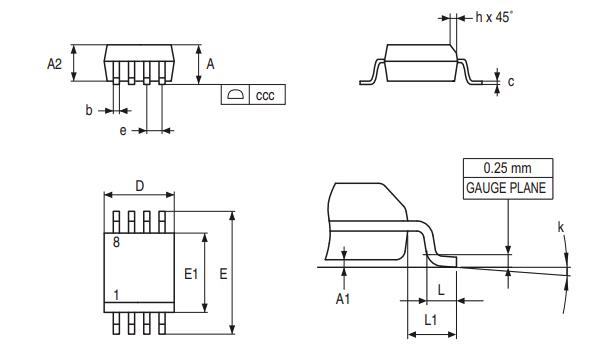

M24M01 Dimensions
