Ceramic capacitor SMD-0603 100nF /50V X7R# K +-10%, Samsung, RoHS The CL10B104KB8NNNC is a multi-layer ceramic capacitor by Samsung Electro-Mechanics with a capacitance of 100nF and a rated voltage of 50V.
964
Apr 29, 2022
Adair Toland
Introduction of MLCC
Ceramic capacitor SMD-0603 100nF /50V X7R# K -10%, Samsung, RoHS
The CL10B104KB8NNNC is a multi-layer ceramic capacitor by Samsung Electro-Mechanics with a capacitance of 100nF and a rated voltage of 50V. This article mainly introduces what the CL10B104KB8NNNC Multilayer Ceramic Capacitor is.
CL10B104KB8NNNC
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.09963 | $0.1 |
| 500+ | $0.07326 | $36.63 |
| 1000+ | $0.06105 | $61.05 |
| 2000+ | $0.05601 | $112.02 |
| 5000+ | $0.05234 | $261.7 |
| 10000+ | $0.04869 | $486.9 |
| 15000+ | $0.04709 | $706.35 |
| 50000+ | $0.0463 | $2315 |
The CL10B104KB8NNNC is a multi-layer ceramic capacitor by Samsung Electro-Mechanics with a capacitance of 100nF and a rated voltage of 50V. The device is only 1.6 x 0.8 x 0.8 mm in size and can operate between -55 and +125°C. RoHS-compliant.
The most common type of capacitor nowadays is the MLCC , which is an electronic component that briefly stores an electrical charge. New innovations have allowed MLCC producers to keep up with the trend of smaller and smaller electronic devices, including as cell phones, computers, DSC, and DVC.
The following shows CL10B104KB8NNNC CAD Model.
Symbol

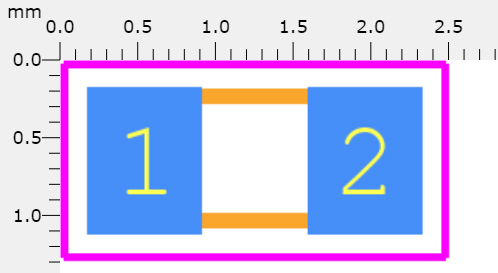

Footprint

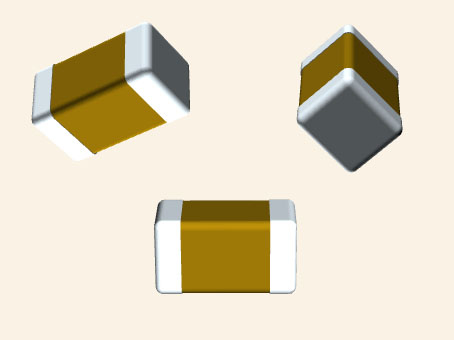

3D Model
- Miniature Size
- Wide Capacitance and Voltage Range
- Tape & Reel for Surface Mount Assembly
- Low ESR
Samsung Electro-Mechanics CL10B104KB8NNNC technical specifications, attributes, parameters and parts with similar specifications to Samsung Electro-Mechanics CL10B104KB8NNNC.
Samsung Electro-Mechanics CL10B104KB8NNNC technical specifications, attributes, parameters and parts with similar specifications to Samsung Electro-Mechanics CL10B104KB8NNNC.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 18 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount, MLCC | |
| Package / Case | 0603 (1608 Metric) | |
| Material | Ceramic | |
| Voltage Rated | 50V | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | CL | |
| Published | 1997 | |
| Size / Dimension | 0.063Lx0.031W 1.60mmx0.80mm |
| Product Attribute | Attribute Value | |
|---|---|---|
| Tolerance | ±10% | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Temperature Coefficient | X7R | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -55°C | |
| Applications | General Purpose | |
| Capacitance | 0.1μF | |
| Voltage - Rated DC | 50V | |
| Depth | 800μm | |
| Case Code (Metric) | 1608 | |
| Case Code (Imperial) | 0603 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Dielectric | X7R | |
| Voltage | 50V | |
| Height | 900μm | |
| Length | 1.6mm | |
| Width | 787.4μm | |
| Thickness (Max) | 0.035 0.90mm | |
| Thickness | 889μm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following shows CL10B104KB8NNNC Part Numbering.
① Samsung Multilayer Ceramic Capacitor
② Size(mm)
③ Capacitance Temperature Characteristic
④ Nominal Capacitance
⑤ Capacitance Tolerance
⑥ Rated Voltage
⑦ Thickness Option
⑧ Product & Plating Method
⑨ Samsung Control Code
⑩ Reserved For Future Use
⑪ Packaging Type

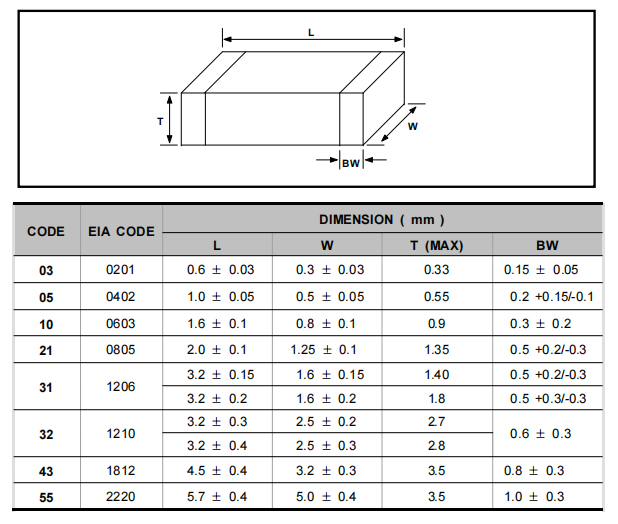

The CL10B104KB8NNNC Appearance and Dimension are given as follows.
Appearance and Dimension
SEMCO (Samsung Electro-Mechanics) is a major manufacturer of high-performance electronic components. SEMCO has been pushing the limits of downsizing for more difficult industrial designs of end products without sacrificing quality or performance since 1973.
Download datasheets and manufacturer documentation for CL10B104KB8NNNC
