Consideration when switching from 2N3904 to MMBT3904 (2 Solutions!!)
Transistors - Bipolar (BJT) - Single MMBT3904/SOT23/TO-236AB
MMBT3904 is an NPN switching transistor in a SOT23 plastic package. This article will unlock more details about MMBT3904, including its datasheet, pinout, feature, equivalents and so on... Welcome your RFQ!
MMBT3904VL
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.09977 | $0.1 |
| 500+ | $0.07336 | $36.68 |
| 1000+ | $0.06113 | $61.13 |
| 2000+ | $0.05608 | $112.16 |
| 5000+ | $0.05242 | $262.1 |
| 10000+ | $0.04876 | $487.6 |
| 15000+ | $0.04715 | $707.25 |
| 50000+ | $0.04637 | $2318.5 |
MMBT3904 Symbol
MMBT3904 Footprint
MMBT3904 3D Model
The collector and emitter of the MMBT3904 are open (reverse biased) when the base pin is at the ground and closed (forward-biased) when the base pin is provided with a signal. The amplification capability of the MMBT3904 is determined by its maximum gain of 300. Because the collector pin can only handle 200mA of current, this transistor cannot be used to connect loads that draw more than that. We must give current (Ib) to the base pin to bias the transistor, which should be limited to 5mA. A maximum of 200mA can flow through the collector and emitter when this transistor is fully biased. Its PNP complement: MMBT3906.
Collector-Base Voltage (Vcb) is 60V
Collector-Emitter Voltage (Vce) is 40V
Emitter-Base Voltage (Veb) is 6 V
Collector Current is 200 mA
Collector Power Dissipation is 200mW
Junction Temperature is 150 ℃
Storage Temperature -55~+150 ℃
Drive modules, such as LED drive, relay drive, etc.
Amplifier modules, such as signal amplifiers, audio amplifiers, etc.
Vcb and Vce are very high, so they can be used to control voltage loads up to 40V
The equivalent for MMBT3904:
BC636
BC639
BC549
2N3904
2N2222
2N3055
2N3906
2N2369
2SC5200
Nexperia USA Inc. MMBT3904VL technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. MMBT3904VL.
Nexperia USA Inc. MMBT3904VL technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. MMBT3904VL.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Surface Mount | |

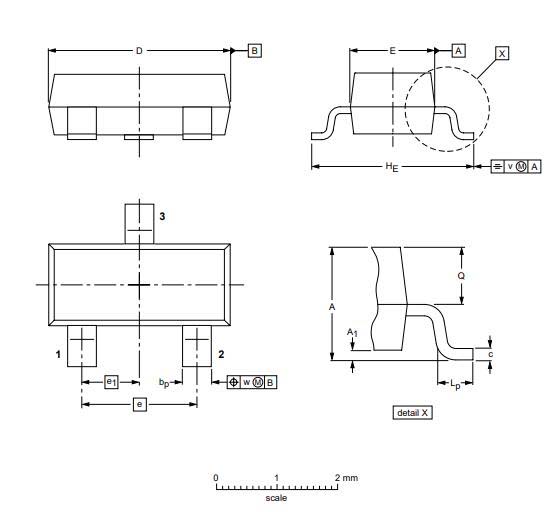

| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Surface Mount | YES | |
| Transistor Element Material | SILICON | |
| Current-Collector (Ic) (Max) | 200mA | |
| Number of Elements | 1 Element | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Pin Count | 3 | |
| JESD-30 Code | R-PDSO-G3 | |
| Configuration | SINGLE | |
| Transistor Application | SWITCHING | |
| Polarity/Channel Type | NPN | |
| Transistor Type | NPN | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA 1V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Collector Cutoff (Max) | 50nA ICBO | |
| JEDEC-95 Code | TO-236AB | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA | |
| Voltage - Collector Emitter Breakdown (Max) | 40V | |
| Transition Frequency | 300MHz | |
| Frequency - Transition | 300MHz | |
| Turn Off Time-Max (toff) | 250ns | |
| Turn On Time-Max (ton) | 70ns | |
| RoHS Status | ROHS3 Compliant |
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
Download datasheets and manufacturer documentation for MMBT3904VL
