STMICROELECTRONICS TDA2009A Audio Power Amplifier, AB, 2 Channel, 12.5 W, 8V to 28V, Multiwatt, 11 Pins The TDA2009A is a class AB dual Hi-Fi Audio power amplifier.
3116
Apr 30, 2022
Adair Toland
1
TDA2009A Amplifier 2 Channel
STMICROELECTRONICS TDA2009A Audio Power Amplifier, AB, 2 Channel, 12.5 W, 8V to 28V, Multiwatt, 11 Pins
The TDA2009A is a class AB dual Hi-Fi Audio power amplifier. This article will unlock its pinout, datasheet, circuit diagram and more detailed information about TDA2009A.
TDA2009A

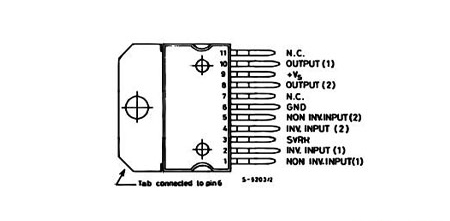

TDA2009A Pinout
Symbol
TDA2009A Symbol
Footprint
TDA2009A Footprint
3D Model
TDA2009A 3D Model
The TDA2009A is a class AB dual Hi-Fi Audio power amplifier assembled in a Multiwatt package, specially designed for high-quality stereo applications as Hi-Fi and music centres.
HIGH OUTPUT POWER (10 + 10W Min. @ D = 1%)
HIGH CURRENT CAPABILITY (UP TO 3.5A)
AC SHORT CIRCUIT PROTECTION
THERMAL OVERLOAD PROTECTION
SPACE AND COST-SAVING: VERY LOW NUMBER OF EXTERNAL COMPONENTS AND SIMPLE MOUNTING THANKS TO THE MULTIWATT PACKAGE.
The equivalent for TDA2009A:
ECG7105
NTE7105
TDA2009A Schematic

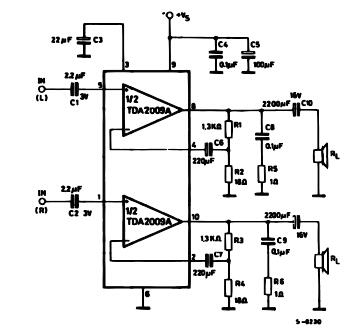

TDA2009A Test and Application Circuit
TDA2009A 10W +10W Stereo Amplifier with Tone Balance and Loudness Control
TDA2009A 18W Bridge Amplifier (d = 1%, GV = 40dB)
TDA2009A High Quality 20 + 20W Two Way Amplifier for Stereo Music Center (one channel only)

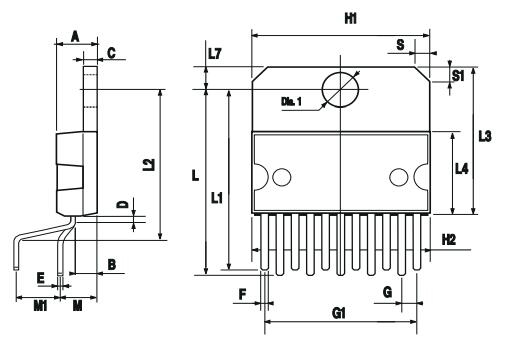

TDA2009A Package
