What is a schottky diode?
DIODE SCHOTTKY 80V 2A SMB
B280 is an 80V rectifier diode with 2 pins in DO-214AA. This article is going to explain where and how to use b280 diodes in your life.
Where to use B280 High Voltage SCHOTTKY Barrier Rectifier
DIODE SCHOTTKY 80V 2A SMB B280 is an 80V rectifier diode with 2 pins in DO-214AA. This article is going to explain where and how to use b280 diodes in your life.
82
Apr 7, 2022
Bishop Emma
B280-13-F
3000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.37237 | $0.37 |
| 10+ | $0.35129 | $3.51 |
| 100+ | $0.33141 | $33.14 |
| 500+ | $0.31265 | $156.32 |
| 1000+ | $0.29495 | $294.95 |
Unit Price:$0.37237
Subtotal: $0.37
Quick Links
An overview of B280
B280 is a 80V barrier rectifier with 2 pins in DO-214AA. B280 diodes are employed in high-frequency applications because of its low turn-on voltage, quick recovery time, and minimal energy loss. B280 diodes can correct a current because of these features, which allow for a fast change from conducting to blocking states.
B280 CAD Model
B280 Symbol

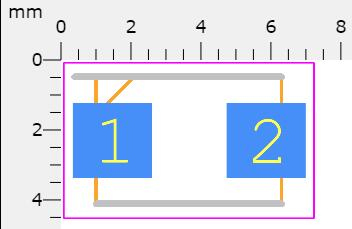

B280 Footprint
B280 3D Model
Specifications
Diodes Incorporated B280-13-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated B280-13-F.
B280-13-F Tech Specifications
B280-13-F Tech Specifications
Diodes Incorporated B280-13-F technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated B280-13-F.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 19 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-214AA, SMB | |
| Number of Pins | 2Pins | |
| Weight | 92.986436mg | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Published | 2017 | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Applications | EFFICIENCY | |
| Additional Feature | LOW POWER LOSS, FREE WHEELING DIODE | |
| HTS Code | 8541.10.00.80 | |
| Capacitance | 75pF | |
| Voltage - Rated DC | 80V | |
| Terminal Position | DUAL | |
| Terminal Form | C BEND | |
| Peak Reflow Temperature (Cel) | 260 | |
| Current Rating | 2A | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | B280 | |
| Pin Count | 2 | |
| Polarity | Standard | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 7mA @ 80V | |
| Output Current | 2A | |
| Voltage - Forward (Vf) (Max) @ If | 790mV @ 2A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Forward Current | 2A | |
| Operating Temperature - Junction | -65°C~150°C | |
| Forward Voltage | 790mV | |
| Max Reverse Voltage (DC) | 80V | |
| Average Rectified Current | 2A | |
| Number of Phases | 1Phase | |
| Peak Reverse Current | 500μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 80V | |
| Capacitance @ Vr, F | 75pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 50A | |
| Max Forward Surge Current (Ifsm) | 50A | |
| Height | 2.62mm | |
| Length | 4.57mm | |
| Width | 3.94mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
B280 Features
-
Schottky Barrier Chip
-
Guard Ring Die Construction for Transient Protection
-
Low Power Loss, High Efficiency
-
Surge Overload Rating to 50A Peak
-
For Use in Low Voltage, High Frequency Inverters, Free
-
Wheeling, and Polarity Protection Application
-
High Temperature Soldering: +260°C/10 Second at Terminal
-
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
-
Halogen and Antimony Free. “Green” Device
B280 Applications
-
Radiofrequency mixer and detector diode applications
-
Power rectifier applications
-
Power or circuit applications
-
Solar cell applications
-
Clamp diode applications

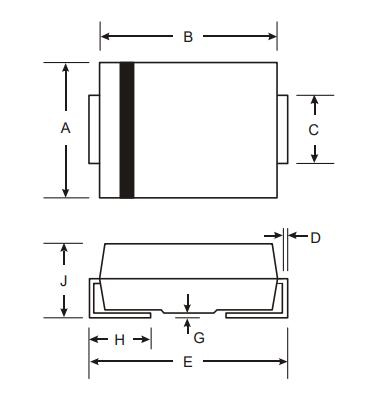

B280 Package Dimensions
B280 Package Dimensions
B280 Manufacturer
Diodes Incorporated delivers high-quality semiconductor products to the world’s leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers’ needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Datasheet PDF
B280-13-F Documents
B280-13-F Documents
Download datasheets and manufacturer documentation for B280-13-F
Environmental Information
Diodes RoHS 3 Cert
Datasheets
B270 - B2100
PCN Assembly/Origin
Mult Devices Assembly 21/May/2019
Frequently Asked Questions
What is the voltage of B280?
80V 2A
What is the operating temperature of B280?
-65°C-150°C
What is the use of Schottky barrier diode?
Schottky diodes are used for their low turn-on voltage, fast recovery time, and low-loss energy at higher frequencies. These characteristics make Schottky diodes capable of rectifying a current by facilitating a quick transition from conducting to blocking state.
How does a Schottky rectifier work?
A Schottky barrier is generated when a semiconductor and a metal form a semiconductor–metal junction in a Schottky diode. The metal side of the diode serves as the anode, while the N-type semiconductor serves as the cathode. Because of the Schottky barrier, the forward voltage drop is low and switching is quick.
What is the difference between diode and Schottky diode?
A 2V DC source is used to power both. The standard diode consumes 0.7 volts, leaving just 1.3 volts to power the load. The Schottky diode consumes only 0.3V due to its smaller forward voltage drop, allowing 1.7V to power the load. The Schottky diode would be the sole option if our load demanded 1.5V.
FAQ
What is the voltage of B280?
80V 2A
What is the operating temperature of B280?
-65°C-150°C
What is the use of Schottky barrier diode?
Schottky diodes are used for their low turn-on voltage, fast recovery time, and low-loss energy at higher frequencies. These characteristics make Schottky diodes capable of rectifying a current by facilitating a quick transition from conducting to blocking state.
How does a Schottky rectifier work?
A Schottky barrier is generated when a semiconductor and a metal form a semiconductor–metal junction in a Schottky diode. The metal side of the diode serves as the anode, while the N-type semiconductor serves as the cathode. Because of the Schottky barrier, the forward voltage drop is low and switching is quick.
What is the difference between diode and Schottky diode?
A 2V DC source is used to power both. The standard diode consumes 0.7 volts, leaving just 1.3 volts to power the load. The Schottky diode consumes only 0.3V due to its smaller forward voltage drop, allowing 1.7V to power the load. The Schottky diode would be the sole option if our load demanded 1.5V.
