WM8960 Stereo CODEC: Pinout, Features and Datasheet

Interface - CODECs 32-VFQFN Exposed Pad -40°C~85°C 0.5mm 48 ksps 2-Wire WOLFSON MICROELECTRONICS WM8960CGEFL/VAudio Codec, Stereo, 2, 2, -40 C, 85 C, 48 kSPS

142

Dec 13, 2021

Caroline Hughes

How To Change Video Codec And Audio Codec With VLC Media Player?

Interface - CODECs 32-VFQFN Exposed Pad -40°C~85°C 0.5mm 48 ksps 2-Wire WOLFSON MICROELECTRONICS WM8960CGEFL/VAudio Codec, Stereo, 2, 2, -40 C, 85 C, 48 kSPS

The WM8960 is a low power audio CODEC offering a combination of high quality audio, advanced features, low power and small size. These characteristics make it ideal for portable digital audio applications with stereo speaker and headphone outputs such as games consoles, portable media players and multimedia phones. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

WM8960CGEFL/V

63In Stock

Min.: 1 Mult.: 1

Quick Links

WM8960 Pinout

The following figure is the diagram of WM8960 pinout.

Pinout

WM8960 CAD Model

The followings are WM8960 Symbol, Footprint, and 3D Model.

PCB Symbol

PCB Footprint

3D Model

WM8960 Overview

The WM8960 is a low power, high quality stereo CODEC designed for portable digital audio applications. The WM8960 operates at analogue supply voltages down to 2.7V, although the digital supplies can operate at voltages down to 1.71V to save power. The speaker supply can operate at up to 5.5V, providing 1W per channel into 8Ω loads. Unused functions can be disabled using software control to save power. The WM8960 is supplied in a very small and thin 5x5mm QFN package, ideal for use in hand-held and portable systems.

The WM8960 has a configurable digital audio interface where ADC data can be read and digital audio playback data fed to the DAC. The WM8960 is controlled by writing to registers through a 2-wire serial control interface. A control word consists of 16 bits. The WM8960 operates as a slave device only. The WM8960 has three control registers that allow users to select which functions are active.

This article provides you with a basic overview of the WM8960 Stereo CODEC, including its pin descriptions, features and specifications, etc., to help you quickly understand what WM8960 is.

WM8960 Features

● DAC SNR 98dB ('A' weighted), THD -84dB at 48kHz, 3.3V

● ADC SNR 94dB ('A' weighted), THD -82dB at 48kHz, 3.3V

● Pop and click suppression

● 3D Enhancement

● Stereo Class D Speaker Driver

◆ <0.1% THD with 1W per channel into 8Ω BTL speakers

◆ 70dB PSRR @217Hz

◆ 87% efficiency (1W output)

◆ Flexible internal switching clock

● On-chip Headphone Driver

◆ 40mW output power into 16Ω at 3.3V

◆ Capless mode support

◆ THD -75dB at 20mW, SNR 90dB with 16Ω load

● Microphone Interface

◆ Pseudo differential for high noise immunity

◆ Integrated low noise MICBIAS

◆ Programmable ALC / Limiter and Noise Gate

● Low Power Consumption

● Low Supply Voltages

◆ Analogue 2.7V to 3.6V (Speaker supply up to 5.5V)

◆ Digital core and I/O: 1.71V to 3.6V

● On-chip PLL provides flexible clocking scheme

● Sample rates: 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48

● 5x5x0.9mm QFN package

Specifications

Cirrus Logic Inc. WM8960CGEFL/V technical specifications, attributes, parameters and parts with similar specifications to Cirrus Logic Inc. WM8960CGEFL/V.

WM8960CGEFL/V Tech Specifications

Cirrus Logic Inc. WM8960CGEFL/V technical specifications, attributes, parameters and parts with similar specifications to Cirrus Logic Inc. WM8960CGEFL/V.

Product Attribute	Attribute Value
Factory Lead Time	19 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Number of Pins	32Pins
Weight	188.609377mg
Operating Temperature	-40°C~85°C
Packaging	Tray
Published	2008
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32Terminations
Type	Stereo Audio
Terminal Position	QUAD

Product Attribute	Attribute Value
Terminal Form	NO LEAD
Number of Functions	1Function
Supply Voltage	1.8V
Terminal Pitch	0.5mm
Operating Supply Voltage	3.6V
Interface	2-Wire
Max Supply Voltage	3.6V
Min Supply Voltage	1.71V
Operating Mode	SYNCHRONOUS
Sampling Rate	48 ksps
Voltage - Supply, Analog	2.7V~3.6V
Voltage - Supply, Digital	1.71V~3.6V
Signal to Noise Ratio (SNR)	94 dB
Number of D/A Converters	2D/A Converters

Product Attribute	Attribute Value
Resolution (Bits)	24 b
Ambient Temperature Range High	85°C
Sigma Delta	Yes
Number of ADCs / DACs	2 / 2ADCs / DAC
Filter	YES
S/N Ratio, ADCs / DACs (db) Typ	94 / 98
Companding Law	A/MU-LAW
Height	1mm
Length	5mm
Width	5mm
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Lead Free	Lead Free

View Similar

WM8960 Functional Block Diagram

The following is the Block Diagram of WM8960.

Block Diagram

WM8960 Applications

● Games consoles

● Portable media / DVD players

● Mobile multimedia

WM8960 Package

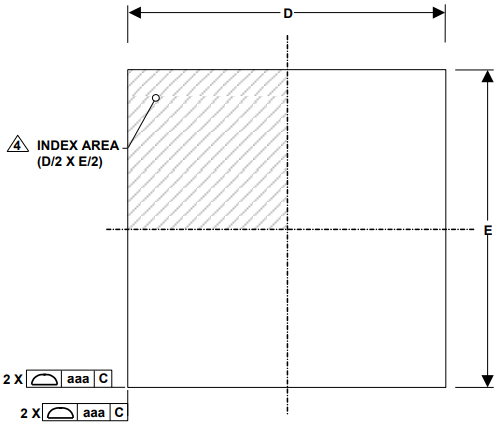

The following diagram shows the WM8960 package.

Top View

Bottom View

Side View

Detail 1

Detail 2

WM8960 Manufacturer

Cirrus Logic is a leader in high performance, low-power ICs for audio and voice signal processing applications. Cirrus Logic's products span the entire audio signal chain, from capture to playback, providing innovative products for the world's top smartphones, tablets, digital headsets, wearables and emerging smart home applications. With headquarters in Austin, Texas, Cirrus Logic is recognised globally for its award-winning corporate culture.

Datasheet PDF

WM8960CGEFL/V Documents

Download datasheets and manufacturer documentation for WM8960CGEFL/V

PCN Packaging

IC Pkg Label Standardization 27/Mar/2019

Datasheets

WM8960 Flyer

WM8960 Datasheet

Frequently Asked Questions

How many stereo analog input channels does WM8960 have?

The WM8960 has three flexible stereo analogue input channels which can be configured as line inputs, differential microphone inputs or single-ended microphone inputs. Line inputs and microphone PGA outputs can be routed to the hi-fi ADCs or directly to the output mixers via a bypass path.

What is the use of automatic level control in WM8960? And how does that happen?

The WM8960 has an automatic level control that aims to keep a constant recording volume irrespective of the input signal level. This is achieved by continuously adjusting the PGA gain so that the signal level at the ADC input remains constant.

Can the digital 3D enhancement options available for WM8960 be used for recording?

The WM8960 has a digital 3D enhancement option to artificially increase the separation between the left and right channels. This effect can only be used for playback, not for record.

Under what circumstances can the timeout circuit in WM8960 automatically update the volume?

If there is a long period where no zero-crossing occurs, a timeout circuit in the WM8960 will automatically update the volume. The volume updates will occur between one and two timeout periods, depending on when the volume update bit is set.

What is the principle of protecting WM8960 from overheating?

The speaker and headphone outputs can drive very large currents. To protect the WM8960 from overheating a thermal shutdown circuit is included and is enabled by default. If the device temperature reaches approximately 1500℃ and the thermal shutdown circuit is enabled the speaker and headphone amplifiers will be disabled. This feature can be disabled to save power when the device is in standby mode.
