PMIC - Voltage Regulators - Linear TO-236-3, SC-59, SOT-23-3 -40°C~85°C TA Over Current 150mA IC REG LINEAR 2.5V 150MA SOT23
The XC6206 is a low ESR voltage regulator with a low dropout voltage of 250 mV at 100 mA and low power consumption (1.0 A). This article mainly covers datasheet pdf, pinout, equivalent, circuit, and more details about the XC6206 voltage regulator. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
XC6206P252MR-G
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.46853 | $0.47 |
| 10+ | $0.44201 | $4.42 |
| 100+ | $0.41699 | $41.7 |
| 500+ | $0.39338 | $196.69 |
| 1000+ | $0.37112 | $371.12 |
The XC6206 is a voltage regulator with a low dropout voltage of 250 mV at 100 mA and low power consumption (1.0 A). The XC6206 has a maximum operating voltage of 6.0 V and an output voltage range of 1.2 V to 5 V. This regulator delivers a lot of current with a very low dropout voltage.
XC6206 Pinout
| Pin No. | Pin Name | Description |
| 1 | VSS | Ground Pin |
| 2 | Vin | Regulated Voltage Input |
| 3 | Vout | Regulated Voltage Output |

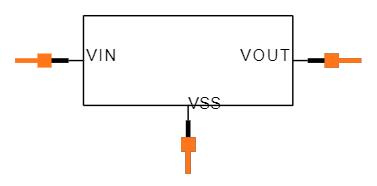

XC6206 Symbol

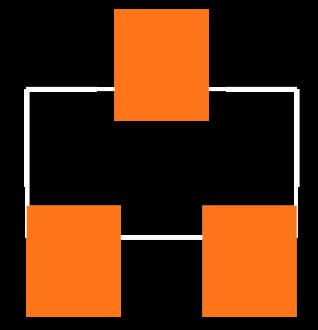

XC6206 Footprint
XC6206 Block Diagram
Torex Semiconductor Ltd XC6206P252MR-G technical specifications, attributes, parameters and parts with similar specifications to Torex Semiconductor Ltd XC6206P252MR-G.
Torex Semiconductor Ltd XC6206P252MR-G technical specifications, attributes, parameters and parts with similar specifications to Torex Semiconductor Ltd XC6206P252MR-G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 10 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Published | 2011 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.95mm | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Pin Count | 3 | |
| JESD-30 Code | R-PDSO-G3 | |
| Voltage - Input (Max) | 6V | |
| Output Voltage | 2.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Type | Fixed | |
| Output Configuration | Positive | |
| Output Voltage 1 | 2.5V | |
| Number of Regulators | 1Regulator | |
| Protection Features | Over Current | |
| Current - Quiescent (Iq) | 3μA | |
| Voltage Dropout (Max) | 0.71V @ 100mA | |
| Dropout Voltage | 350mV | |
| Length | 2.9mm | |
| RoHS Status | ROHS3 Compliant |
Output Voltage Range 1.2V to 5.0V (selectable in 100mV steps)
Highly Accurate ± 2%
Dropout Voltage 160mV @ 50mA (3.0V type)
Low Power Consumption 2μA (TYP)
Maximum Output Current 100mA (Vin≥Vout+1V)
Internal protector current limiter and short protector
Small packages SOT-89-3, SOT-23-3, SOT23-3B, SOT353, and other required
Smartphones / Mobile phones
Portable game consoles
Digital still cameras / Camcorders
Digital audio equipment
Reference voltage sources
Multi-function power supplies
XC6206 Equivalents for XC6216
AMS1117, MIC5225, MIC5205
The XC6206 is easy to use because just three pins need to be connected. A 1 f ceramic capacitor connects the VIN pin of the XC6206 to the input supply voltage. To decrease input noise, a ceramic capacitor is utilized. The VSS pin is connected to the ground, while the Vout pin provides a regulated output. The XC6206 application circuit is shown below.
XC6206 Application Circuit
Torex has grown rapidly as a leading manufacturer of CMOS power management ICs which are widely used for energy-efficient applications powered by batteries. They provide the main supply line of voltage regulators, voltage detectors, and DC/DC converters. They also provide high-quality products including charge pump ICs, Multi-Chip Modules, Mosfets, op-amps, oscillators, etc. Based on their unique tenet of "Green Operation", Torex designs and develops CMOS analog technologies combined with their high-performance products to meet the specific requirements of their customers. Their devices can switch between two modes: high speed and power save automatically or manually, which depends on the load current.
Download datasheets and manufacturer documentation for XC6206P252MR-G
