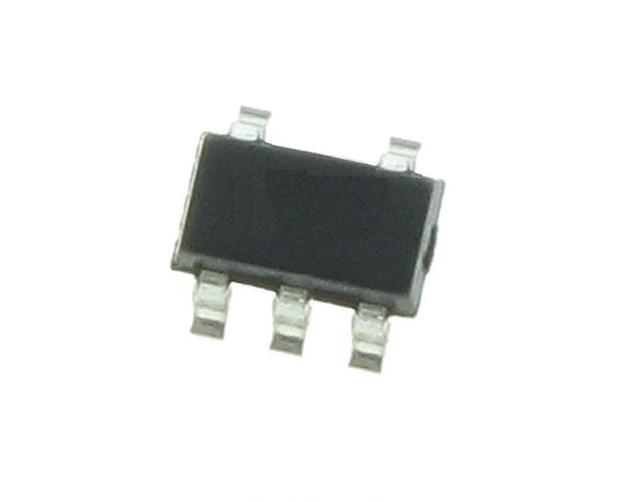

xc6220b331mr-g:LDO Voltage Regulators 1A High Speed Green Operation Vltg Reg

The XC6220 series is a CMOS voltage regulator with Green Operation that is highly accurate, low noise, fast, has a low dropout, and has a large current. A voltage reference, an error amplifier, a current limiter, an inrush current prevention circuit, a phase compensation circuit, and a driver transistor are all part of the series.

The ultra-low dropout voltage performance with output currents up to 1A with a 0.2 on-resistance driver transistor integrated greatly extends battery life, as does the Green Operation function, which can switch between high speed and power save modes automatically. For the output stabilization capacitor, a low ESR ceramic capacitor can be used (CL).

Using laser trimming technologies, the output voltage can be adjusted in 0.05V increments within a range of 0.8V5.0V. There is an overcurrent protection circuit as well as a thermal shutdown circuit built-in. When the output current reaches its limit current, the over-current protection circuit kicks in. When the junction temperature reaches its limit temperature, the thermal shutdown circuit will activate. The inrush prevention circuit controls the inrush current that charges to CL when the IC starts up. Voltage fluctuations in the power supply caused by inrush current during system startup can thus be reduced.

The CE function allows the output to be disabled and the IC to enter a standby mode, resulting in significantly reduced power consumption.

• Optical disk drive

• Magnetic disk drive

• UMPCs

• Digital still cameras / Camcorders

• Digital audio equipment

• CD-ROM, CD-R/RW drives

• DVD drives

• HDD drives

• MIDs, Video cameras

• Portable AV equipment

Maximum Output Current Dropout Voltage Operating Voltage Range Output Voltage Range Accuracy Low Power Consumption Operating Temperature Thermal Shutdown Inrush Current Protection CL Auto Discharge CE Pull-Down Resistor Output Capacitor Packages Environmentally Friendly 1000mA (TYP.:1200mA limit) 5.0V (0.05V increments): 8A (TYP.) in PS mode: 50A (TYP.) in HS mode Detect 150, Release: 700mA (MAX.): XC6220B/D Series: XC6220C/D Series: Ceramic Capacitor Compatible: EU RoHS Compliant, Pb Free

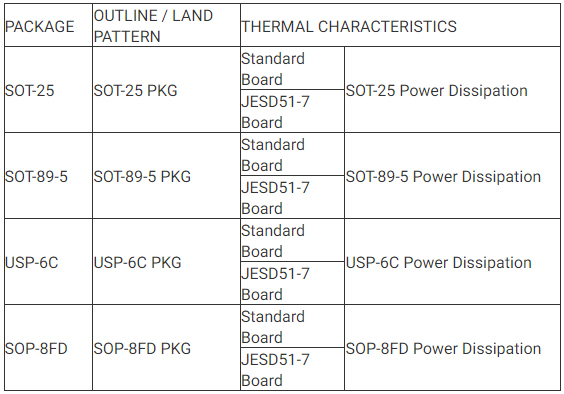

* The No.5 and 6 VIN pins should be connected. The No.1 and 2 pins VOUT pins should be connected. The dissipation pad for the USP-6C package should be solder-plated in recommended mount pattern and metal masking to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to the VSS (No. 4)

SOT-25 PIN NUMBER SOT-89-5 USP-6C PIN NAME CE VIN VSS VOUT NC FUNCTIONS ON/OFF Control Power Input Ground Output No connection

Selection Guide Please see the optional setting for CL discharge and internal CE pull-down. PRODUCT NAME XC6220C XC6220D CONDITIONS without CE Pull-down resistor, without CL auto discharge (Semi-custom) without CE Pull-down resistor, with CL auto discharge (Standard) with CE Pull-down resistor, without CL auto discharge (Semi-custom) with CE Pull-down resistor, with CL auto discharge (Semi-custom).

symbol

footprint

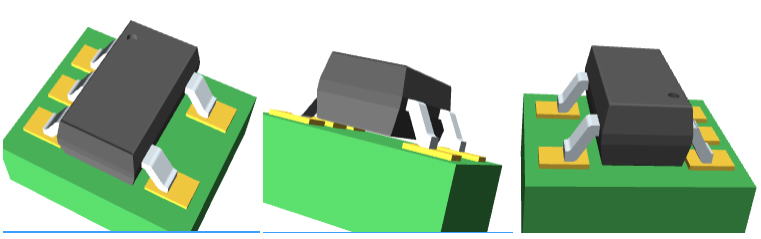

3D

Torex Semiconductor Ltd XC6220B331MR-G technical specifications, attributes, parameters and parts with similar specifications to Torex Semiconductor Ltd XC6220B331MR-G.

Download datasheets and manufacturer documentation for Torex Semiconductor Ltd XC6220B331MR-G.

Torex is a leading provider of CMOS power management ICs targeted toward battery-powered and energy-efficient applications. Torex specializes in CMOS analog technology, with LDO voltage regulators, voltage detectors, and DC/DC converters making up their core product offering. Using laser trimming, they are able to offer 1% and 2% accuracy devices. Many of their devices are available in 0.05V increments.

Additional Torex products include charge pump ICs, Multi-Chip Modules, Mosfets, op-amps, oscillators, PLL clock generator ICs, Schottky barrier diodes, battery charger ICs, Hall Effect ICs, and load switches. Torex offers a unique GO "Green Operation" energy-saving function. Many of their devices are able to automatically or manually switch between high-speed mode and power save mode depending upon the load current. Torex offers some of the smallest packages in the world. All of their devices are RoHS compliant, and their complete product line-up will also be halogen and antimony free by 2Q 2010.
