XRP7675 Step-Down Regulator: Pinout, Features and Datasheet

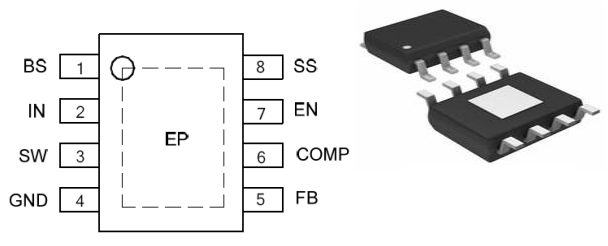

The following figure is the diagram of XRP7675 Pinout.

Pinout

The followings are XRP7675 Footprint and 3D Model.

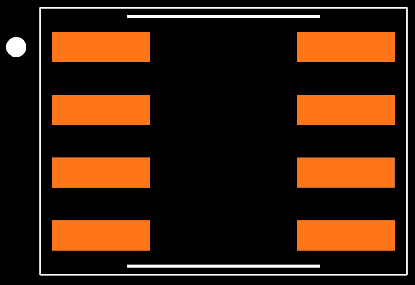

Footprint

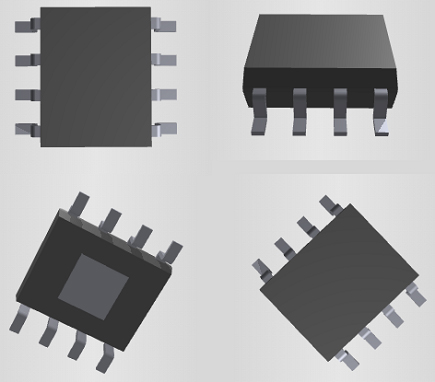

3D Model

The XRP7675 is a 3A capable synchronous current-mode PWM step down (buck) voltage regulator with improved light current load efficiency. A wide 4.5V to 18V input voltage range allows for single supply operations from industry standard 5V and 12V power rails. With a 340kHz constant operating frequency and integrated high and low-side 100mΩ/100mΩ MOSFETs, the XRP7675 reduces the overall component count and solution footprint. Current-mode control provides fast transient response and cycle-by-cycle OCP. An adjustable soft-start prevents inrush current at turn-on, and in shutdown mode the supply current drops to 0.1μA. At light current loads, the XRP7675 operates in Discontinuous Conduction Mode (DCM) and is complemented by a pulse frequency modulation mode (PFM) to provide excellent conversion efficiency. Built-in output over-voltage (open load), over temperature, cycle-by-cycle over-current, under-voltage lockout (UVLO) and  hiccup mode short-circuit protection insures safe operation under abnormal operating conditions. The XRP7675 is offered in a RoHS compliant, “green" / halogen free 8-pin Exposed Pad SOIC package.

This article will introduce XRP7675 systematically from its features, pinout to its specifications, applications, also including XRP7675 datasheet and so much more.

● 3A Continuous Output Current

● 4.5V to 18V Wide Input Voltage

   ◆ 0.925V to 16V Adjustable Output Voltage

   ◆ ±2% Output Voltage Accuracy

● PWM Current-Mode Control

   ◆ 340kHz Constant Operations

   ◆ Up to 95% Efficiency

● Light-Load Efficiency

   ◆ Discontinuous Conduction Mode (DCM)

   ◆ Pulse Frequency Modulation Mode (PFM)

● Programmable Soft-Start and Enable Function

● Built-in Thermal, Over-Current, UVLO, Output Over-Voltage and hiccup mode short-circuit protection

● RoHS Compliant, "Green"/Halogen Free 8-Pin Exposed Pad SOIC Package

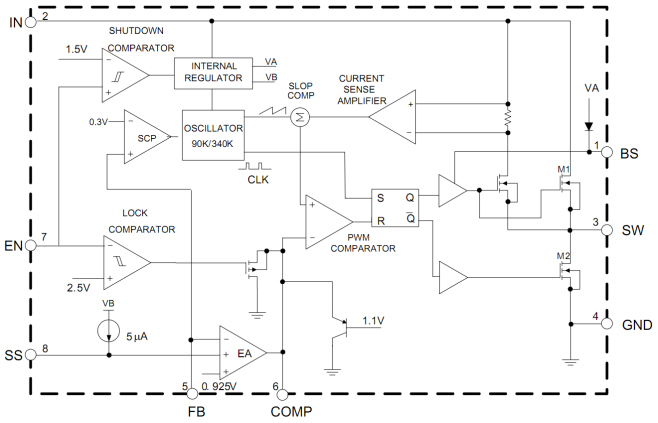

The following is the Block Diagram of XRP7675.

XRP7675 Block Diagram

● Distributed Power Architecture

● Portable Equipment

● Point of Load Converter

● Audio-Video Equipment

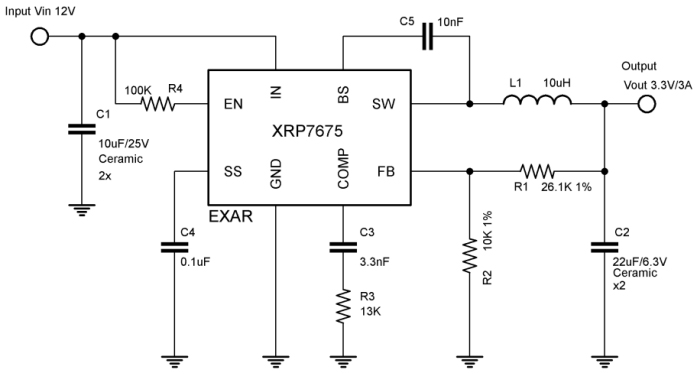

The following diagram shows the XRP7675 Application Diagram.

XRP7675 Application Diagram

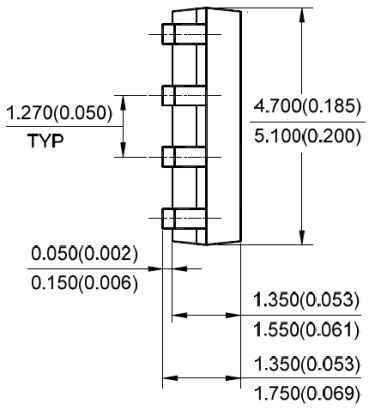

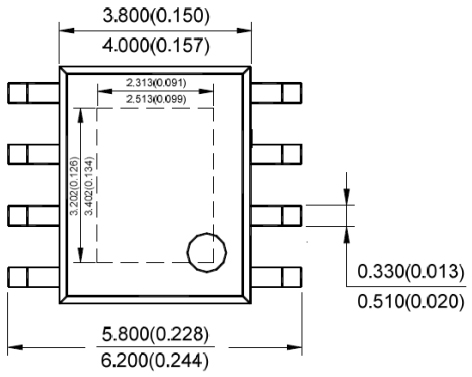

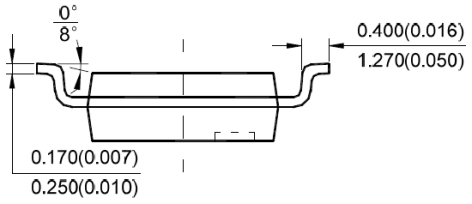

The following diagrams show the XRP7675 Package.

View A

View B

View C
