Capacitor Safety Discharge Calculator

Capacitors store charge, which if not discharged properly can lead to the risk of electric shock and damage to equipment. By entering the value and voltage of the capacitor, Jak's calculator calculates the resistance value and time required for safe discharge to ensure that the capacitor can discharge safely and reduce potential risks. Capacitor Safety Discharge Calculator provides a capacitor safety discharge calculator to ensure personal safety and device integrity.

µF

V

V

Ω

Time required to reach safe voltage (s)

Initial Power On Resistor (w)

Time Constant (s)

0

Energy Released (J)

s

Time required to reach safe voltage (s)

Initial Power On Resistor (w)

Time Constant (s)

Energy Released (J)

Introduction




capacitor discharge time - how to calculate with examples



Function of Capacitor Safety Discharge Calculator

A capacitor is an electronic component capable of storing electrical charge, and when too much charge is stored in a capacitor, it can cause damage or danger to circuits and devices. Therefore, it is necessary to discharge the capacitor safely to avoid this happening. The capacitor safety discharge calculator can calculate the time required for the capacitor to discharge according to the capacitance, voltage and discharge resistance of the capacitor.



How to use Capacitor Safety Discharge Calculator

To use a Capacitor Safety Discharge Calculator, you need to enter parameters such as the capacitor capacity, voltage, and discharge resistance, and then the calculator will calculate the discharge time based on these parameters. The specific steps are as follows:

  1. Determine the capacitor capacity, voltage and discharge resistance and other parameters.
  2. Open the capacitor safety discharge calculator and enter the capacitor capacity, voltage and discharge resistance.
  3. Click the Calculate button, and the calculator will calculate the time required for capacitor discharge according to the input parameters.
  4. In the discharge process, it is necessary to pay attention to safety to avoid excessive voltage or current generated by the capacitor, so as not to cause harm to personnel and equipment.



The calculation formula of capacitor discharge time

t=RC

Where t is the discharge time, R is the resistance value (ohms), and C is the capacitance value (farad).

After each time constant, the capacitor charge voltage reaches 0.632 times (63.2%) of the voltage difference with the power supply. It is generally believed that after 5 time constants, the capacitor is full. It can be imagined that the capacitance voltage changes during charging as follows:

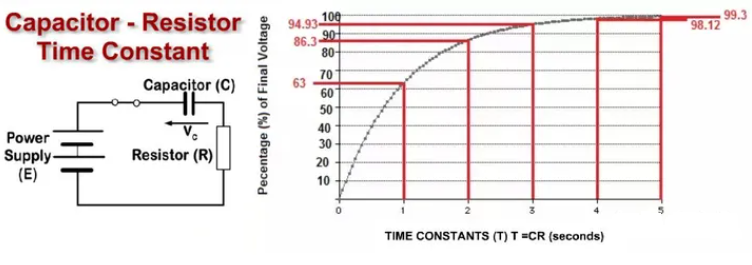

Capacitance time constant and charging process (power supply is constant voltage source)

The calculation of capacitor discharge time can be simply expressed by the above formula, but in practical applications, it is also necessary to take into account the characteristics of the capacitor itself, such as the temperature of the capacitor, the ambient temperature, voltage, current, etc., if any of them changes, it will affect the calculation result of the capacitor discharge time.



ALSO SEE:



Capacitance Conversion

Capacitor Safety Discharge Calculator

Wire Size Conversion Calculator

How many time constants for a capacitor to fully discharge?
In electronics, it generally takes approximately 5 time constants for a capacitor to fully discharge. This means that after 5 time constants have elapsed, the voltage across the capacitor will have decreased to a negligible level, effectively reaching full discharge. The time constant (τ) of a capacitor discharge process is calculated using the formula: \[ τ = R \times C \] After 5 time constants (5τ) have passed, the voltage across the capacitor will have decayed significantly, and the capacitor can be considered fully discharged for practical purposes.
How do I choose a safety capacitor?
When choosing a safety capacitor, consider factors like voltage rating, capacitance value, safety standards compliance, temperature stability, dielectric material, endurance, reliability, and size. Select a capacitor with a voltage rating higher than the circuit's maximum voltage, suitable capacitance for the application, and adherence to safety standards. Ensure temperature stability, appropriate dielectric material, and reliable endurance for consistent performance. Choose a capacitor size and mounting style that fit the space and assembly requirements. By considering these factors, you can select a safety capacitor that meets your application's needs for performance, safety, and reliability.
How do you properly discharge a capacitor?
To properly discharge a capacitor, first, turn off power and disconnect it from the circuit. Then, use a resistor or insulated tool to create a short circuit across the capacitor terminals to dissipate stored charge gradually. Verify discharge with a multimeter and wait for any residual charge to dissipate. Wear safety gear like insulated gloves and goggles. By following these steps, you can safely discharge a capacitor and prevent electrical hazards.
