What is PCB Trace Width

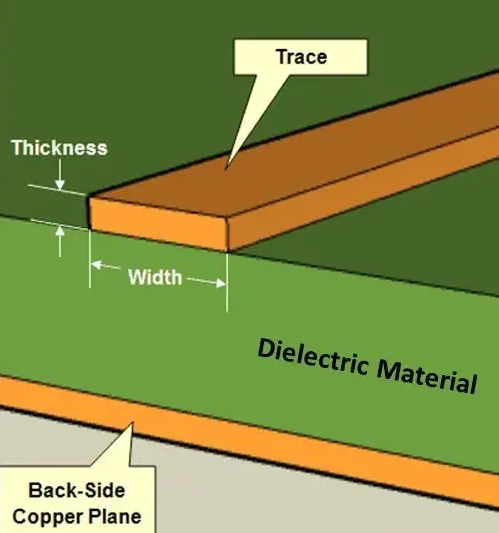

PCB traces or tracks are copper conductors on a PCB that carry signals on the surface of the PCB. They are the flat, narrow sections of copper foil left behind after etching on the PCB. The current flowing through the copper traces generates a significant amount of heat. Properly calibrated PCB trace width and thickness help minimize heat buildup in the circuit board. Wider traces have lower electrical resistance and therefore accumulate less heat. As shown in the diagram below, PCB trace width refers to the horizontal dimension of the trace, while thickness refers to the vertical dimension of the trace.
How to determine the correct trace width
To determine the correct trace width, several factors need to be considered:
1. Copper Layer Thickness: The copper layer thickness represents the actual trace thickness on the PCB. For high current PCBs, the default copper thickness is typically around 1 ounce (35 micrometers) to 2 ounces (70 micrometers).
2. Trace Cross-Sectional Area: Higher power requirements on the PCB necessitate traces with larger cross-sectional areas. This is directly proportional to the trace width.
3. Trace Location: Whether the trace is on the top layer, bottom layer, or inner layer of the PCB.
What is PCB trace width calculator
The width of traces depends on many factors such as copper layer thickness, length of the trace, etc., making it difficult to manually calculate an accurate value. This is why most PCB manufacturing companies provide tools for calculating trace widths. A PCB trace width calculator is a tool that takes all these factors into account to provide an accurate value for the required trace width.
How to use PCB trace width calculator
Using a PCB trace width calculator is a straightforward process. Here are the general steps to use a PCB trace width calculator:
1. Open the Calculator: Find a reliable PCB trace width calculator tool online or through PCB design software.
2. Input Parameters:
- **Current Carrying Capacity**: Enter the maximum current that the trace will carry without overheating.
- **Trace Length**: Input the length of the trace for which you are calculating the width.
- **Temperature Rise**: Specify the maximum allowable temperature rise for the trace.
- **Copper Thickness**: Enter the thickness of the copper layer on the PCB (usually in ounces per square foot, oz/ft^2).
- **External Factors**: Some calculators may ask for additional parameters like ambient temperature, trace thickness, and copper conductivity.
3. Calculate Trace Width: Click on the "Calculate" or "Calculate Trace Width" button to generate the recommended trace width based on the input parameters.
4. Review Results: The calculator will provide you with the recommended trace width based on the parameters you entered. It may also display additional information such as voltage drop, power dissipation, etc.
5. Adjust as Needed: If the calculated trace width is too narrow or thick for your design constraints, you can adjust the input parameters and recalculate until you find a suitable trace width.
6. Implement in PCB Design: Once you have the recommended trace width, you can use this value in your PCB design software to create traces of the appropriate width.
The importance of PCB trace width
The trace width on a printed circuit board (PCB) is a critical design parameter that plays a significant role in the overall performance and reliability of the circuit. Here are some key reasons highlighting the importance of PCB trace width:
1. Current Carrying Capacity: The trace width determines the amount of current that can flow through a conductor without overheating. A narrower trace will have higher resistance, leading to increased heat generation and potential failure. By calculating the appropriate trace width based on the expected current, you ensure that the trace can carry the required current without exceeding safe operating temperatures.
2. Voltage Drop: A trace with inadequate width can result in voltage drop along the length of the trace, affecting the overall voltage levels in the circuit. Proper trace width selection helps minimize voltage drop and ensures that the intended voltage levels are maintained across the circuit.
3. Signal Integrity: Trace width also impacts signal integrity in high-speed digital circuits and RF applications. Improper trace width can lead to signal distortion, reflection, and signal integrity issues. By maintaining the correct trace width, you reduce signal degradation and ensure reliable signal transmission.
4. Electromagnetic Interference (EMI): Narrow traces can act as antennas and radiate electromagnetic interference, affecting the operation of nearby components and circuits. By using appropriate trace widths, you can minimize EMI emissions and improve the overall electromagnetic compatibility of the PCB.
5. Thermal Management: Proper trace width design is essential for efficient thermal management on the PCB. Adequate trace width helps distribute heat evenly and prevents localized hotspots that can damage components or affect overall system reliability.
6. Manufacturability: The chosen trace width should also consider manufacturability factors such as the capabilities of the PCB fabrication process. Choosing trace widths that are within the manufacturing tolerances of the PCB manufacturer ensures cost-effective and reliable production.
In summary, selecting the right PCB trace width is crucial for ensuring the electrical performance, thermal management, signal integrity, and reliability of the circuit design. It is essential to consider the current-carrying capacity, signal integrity requirements, thermal considerations, and manufacturability factors when determining the appropriate trace width for a PCB design.
